Action:
|
Selects a face from a solid model and prepares it for deformable modeling.
|
|
|
Syntax:
|
(ds:select-face)
|
|
|
Arg Types:
|
None
|
|
|
Returns:
|
unspecified
|
|
|
Description:
|
Prompts for a pick-event, which is used to select a face from a solid model for deformable editing. When the pick-event successfully selects a face, that face is bound to the mouse with
(ds:mouse selected-face), and is bound to the global variable ds-model so that all the convenience routines provided in the file
dsdemo.scm will work on the selected-face.
|
|
|
Limitations:
|
Not Applicable
|
|
|
Example:
|
; ds:select-face
|
|
; If not already loaded, then
|
|
(load "dsdemo.scm")
|
|
;; [Autoloading dscurve.scm]
|
|
;; [Autoloading demoinit.scm]
|
|
; Select one face out of a solid to sculpt
|
|
(ds:select-face)
|
|
; Pick Face to Sculpt:
|
|
; the end-user places the cursor over a
|
|
; face and picks
|
|
; with the left mouse.
|
|
;; #[entity 5 1] constructed new attrib_dm2acis
|
|
;; now bound to ds-face
|
|

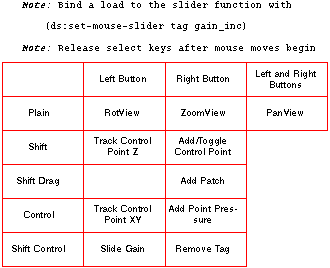

;; ds:mouse Function Map
|
|
;; Note: Bind a load to the slider function with
|
|
;; (ds:set-mouse-slider tag gain_inc)
|
|
;; Note: Release select keys after mouse moves begin
|
|
|
